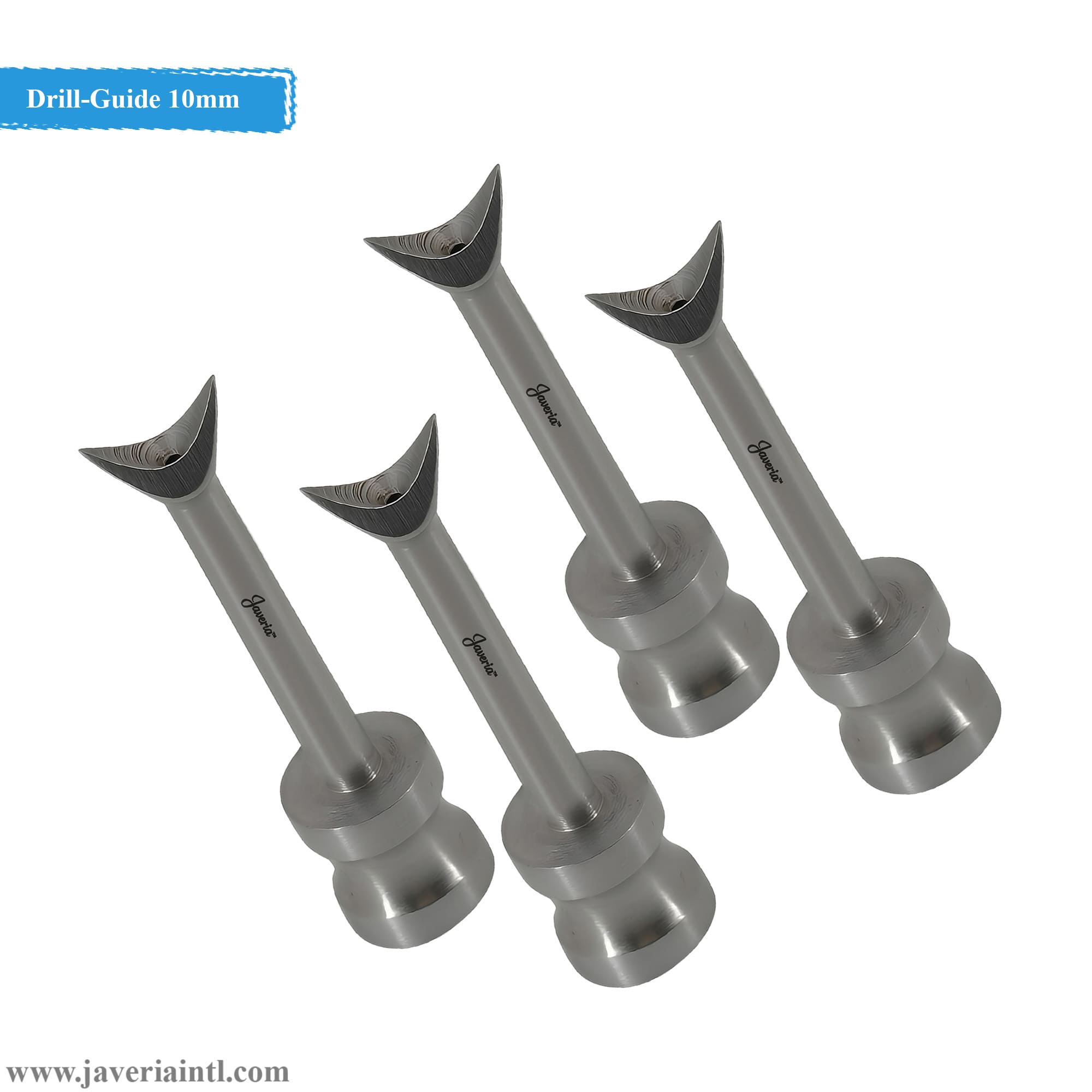

Self-Centring Drill-Guide 10mm Spread

The Self Centring Drill Guide 10mm Spread is a vital tool in orthopedic surgery, specifically designed to automatically center drill holes within plate holes. Its self-aligning mechanism ensures each drilled hole is perfectly centered, minimizing human error and guaranteeing symmetrical fixation across the plate.

This guide is particularly essential in trauma, reconstructive, and plating surgeries, where balanced screw positioning is crucial to achieving optimal fixation strength and anatomical stability.

Clinical Applications

The Self Centring Drill Guide 10mm is widely used in:

• Fracture Fixation: Accurately centers drill holes for cortical and cancellous screws.

• Bone Plating Procedures: Ensures precise alignment of drill holes within plate slots.

• Orthopedic Trauma Surgery: Maintains uniform screw spacing for compression and locking plates.

• Reconstructive Orthopedics: Used in long bone surgeries requiring balanced drilling through plate holes.

By maintaining equal spacing between both barrels, the self-centering function ensures mechanical balance and symmetrical load distribution during bone fixation.

Design Advantages

• Automatic Centering Mechanism: Keeps the drill bit perfectly aligned with the plate hole.

• 10mm Spread: Ideal for most standard orthopedic plates.

• Dual-Barrel Construction: Ensures identical spacing on both sides.

• Ergonomic Handle Design: Provides superior control and comfort during procedures.

• German Stainless Steel Build: Offers long-lasting durability and corrosion resistance.

• Polished Surface Finish: Prevents tissue drag and facilitates smooth cleaning.

• Reusable and Autoclavable: Designed for repeated surgical use without compromising performance.

Technical Specifications

Benefits in Surgery

• Perfect Hole Centering: Ensures drill holes align precisely with plate centers.

• Improved Fixation Strength: Guarantees symmetrical screw placement for stable constructs.

• Reduces Alignment Errors: Eliminates guesswork and uneven drilling.

• Time Efficiency: Simplifies procedure by automatically positioning the drill.

• Enhanced Durability: Maintains accuracy even after repeated sterilizations.

• Universal Compatibility: Works with most orthopedic plating systems.

Comparison with Similar Instruments

While traditional fixed drill guides require manual positioning, the Self Centring Drill Guide 10mm eliminates misalignment through its automatic centering design. Unlike standard single-barrel guides, this model’s dual-barrel configuration ensures uniform distance from the plate’s edges, significantly enhancing accuracy.

It provides a faster, more reliable alternative to manual alignment tools ensuring each drilled hole perfectly matches the plate’s geometry for consistent surgical outcomes.

Care & Maintenance

1. Rinse immediately after use to remove bone debris and fluids.

2. Clean thoroughly with a neutral pH detergent and soft brush.

3. Rinse with distilled water and dry fully before sterilization.

4. Inspect barrels for residue or misalignment before reuse.

5. Autoclave under standard surgical sterilization conditions.

Regular cleaning and inspection maintain accuracy and extend the instrument’s operational life.

Why Buy from Javeria Intl

Javeria Intl is a globally recognized manufacturer of orthopedic surgical instruments, known for innovation, reliability, and adherence to international quality standards. Each Self Centring Drill Guide 10mm Spread is crafted from high-grade German stainless steel and verified under ISO 9001, ISO 13485, and CE certifications.

Javeria Intl instruments are trusted by surgeons worldwide for their precision, ergonomic handling, and lasting performance. Our orthopedic line encompasses drill guides, sleeves, fixation tools, and specialized surgical accessories engineered for accuracy and consistency in every procedure.

Related Categories

• Orthopedic Surgical Instruments – Precision tools for bone cutting, fixation, and joint reconstruction.

• Hip Surgery Instruments – Retractors and elevators for hip arthroplasty.

• Spine Instruments – Tools designed for spinal fusion, decompression, and vertebral fixation.

Follow Javeria Intl Online

• Instagram – Javeria Intl

• LinkedIn – Javeria Intl

FAQs

Q1: What is the purpose of the Self Centring Drill Guide?
A1: It automatically centers drill holes within plate holes for precise screw alignment.

Q2: What does the 10mm spread indicate?
A2: It refers to the distance between the dual barrels, ideal for standard orthopedic plate spacing.

Q3: What material is it made of?
A3: Crafted from premium German stainless steel for superior durability and corrosion resistance.

Q4: Can it be sterilized and reused?
A4: Yes, it’s fully autoclavable and designed for multiple surgical uses.

Q5: Is it certified for clinical use?
A5: Yes, it meets ISO 9001, ISO 13485, and CE international quality standards.
